Digital Headend Stations
(Digital HeadEnds)

Receive video signal from satellite, terrestrial or cable networks and broadcast the content over IP or DVB-T/T2/C

For IP networks

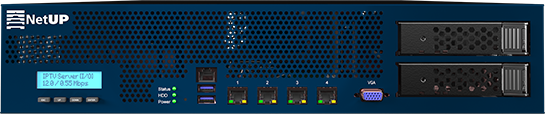

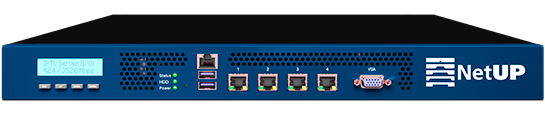

NetUP Streamer

up to 16 DVB inputs


Receive satellite or terrestrial signal directly from the antennas or cable networks.

Stream live TV channels over UDP (multicast/unicast), HTTP, RTMP, HLS and DASH

NetUP MultiMedia Processor

up to 60 SD channels


High-performance MPEG-2, AVC, HEVC transcoder that supports mosaic and graphics overlay.

Stream live TV channels over UDP (multicast/unicast), HTTP, RTMP, HLS and DASH

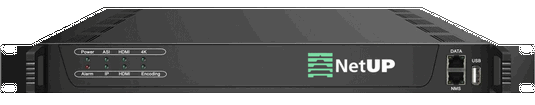

NetUP Streamer HEVC

up to 12 HDMI inputs


Encoders with support of the latest high-performance video codec HEVC (H.265) and resolutions up to UltraHD (4K), including upscale.

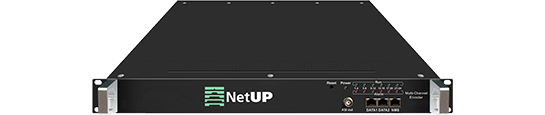

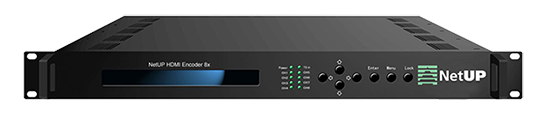

NetUP Streamer HD

up to 24 HDMI/SDI inputs


A family of multi-channel high-performance HDMI, HD-SDI encoders with MPEG-4 AVC (H.264), AAC, and text or logo overlay support

NetUP Streamer AV

up to 24 CVBS/AV inputs


A family of multi-channel high-performance CVBS, AV encoders with MPEG-2, MPEG-4 AVC (H.264), AAC, and text or logo overlay support

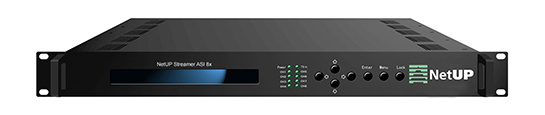

NetUP Streamer ASI

8 DVB-ASI inputs


A professional solution for receiving a DVB-ASI signal. The received streams are multiplexed and exported to local network with multicast and unicast support (UDP, RTP)

For DVB networks
NetUP Streamer DVB xC

8 DVB-S2 to DVB-C


Receive satellite signal directly from antennas, decode using CAM-modules and relay to IP or DVB-C network with up to 256QAM support

NetUP Streamer HD xC

up to 12 HD inputs to DVB-C


A family of multi-channel high-performance HDMI, HD-SDI encoders with MPEG-4 AVC (H.264), AAC, and text or logo overlay support

NetUP Streamer xC

up to 1000 TV channels to DVB-C


High-performance IP-QAM modulator with multiplexing, pid-filtering and scrambling functions. 16 or 32 bands with QAM256 modulation support

Hardware parts
Universal Dual DVB-CI

Universal PCI-E card supporting DVB-S/S2, DVB-T/T2, DVB-C/C2, ISDB-Tb and ISDB-S standards. 2 Common Interfaces for installing CAM-modules

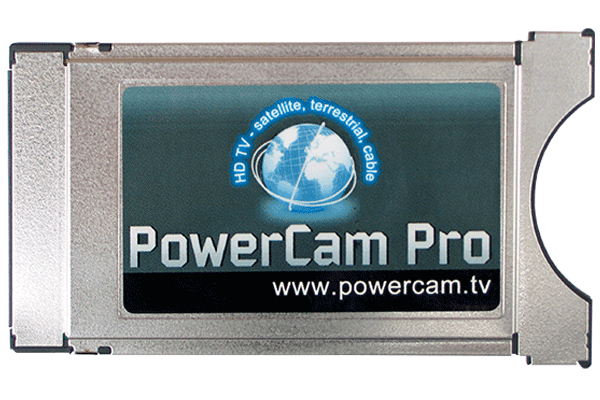

CAM-modules

Professional multi-channel CAM-modules for signal decoding with Viaccess, Irdeto, Conax and other encodings support
