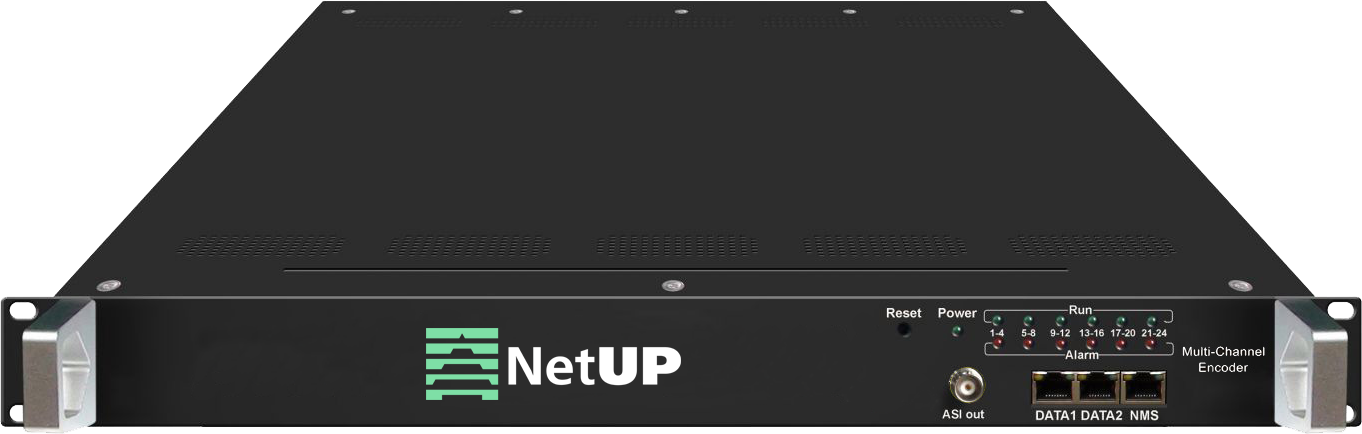

NetUP Streamer AV allows you to receive analog low-frequency signal (CVBS, RCA), encode to MPEG-2 or MPEG-4 AVC (H.264) + MPEG Layer2 (AAC optional) and broadcast to IP network (ASI optional) using UDP protocols and RTP (SPTS or MPTS).
Tech specs
Design
Rackmount 19”, 1U
Power supply: 220V A.C., 50/60 Hz
Dimensions: 480 х 420 х 44 mm
Performance
Up to 8Mbps per channel in MPEG-2/4
Resolution up to 720 * 480_60i, 720 * 576_50i
Audio codecs MP2, AC-3 up to 384kbps per channel
Interfaces
8, 12 or 24 CVBS inputs
1 or 2 Gigabit Ethernet ports
