NetUP Streamer HD allows to receive HD-SDI, SD-SDI and HDMI streams, encode to MPEG-4 AVC (H.264) + MPEG Layer2 (AAC optional) and broadcast to IP network (ASI optional) using UDP and RTP (SPTS or MPTS).
To achieve the highest image quality, we use professional Fujitsu chip encoders, providing resolution up to 1920 * 1080 * 60p with bitrate up to 19 Mb per channel, and the highest density (up to 24 inputs in one unit). That allows the equipment to be used in various digital broadcasting systems.
Models

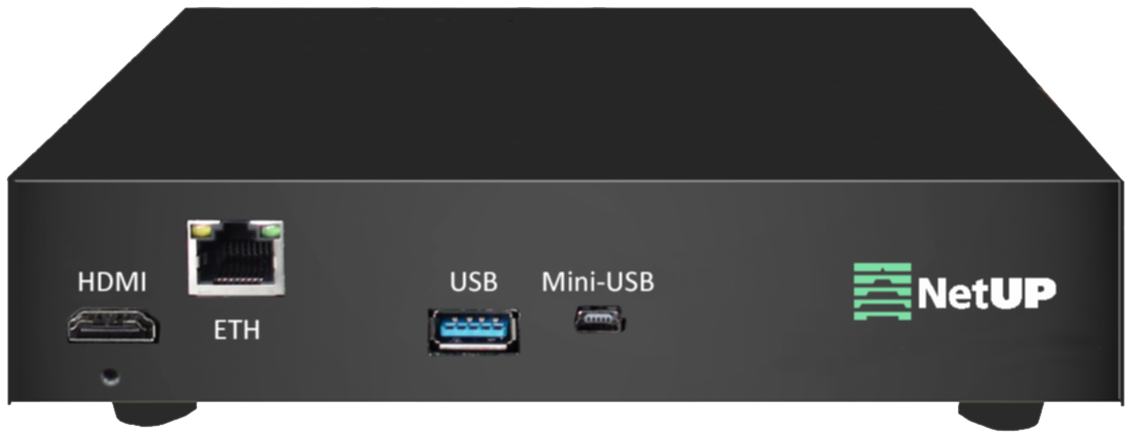

Compact encoder for receiving one channel but broadcasting or recording simultaneously three independent streams with different encoding settings and protocols.
Design
Desktop mounting
Power: 220V A.C., 50/60 Hz
Dimensions: 190 х 110 х 44 mm
Performance
3 independent encoders
H.264, up to 15Mbps per channel
up to 1080х60p
MP2, AAC до 128kbps
UDP, RTSP, RTMP, HTTP, HLS
Interfaces
1 Gigabit Ethernet
1 USB for external storage
1 HDMI
WEB-based managment interface

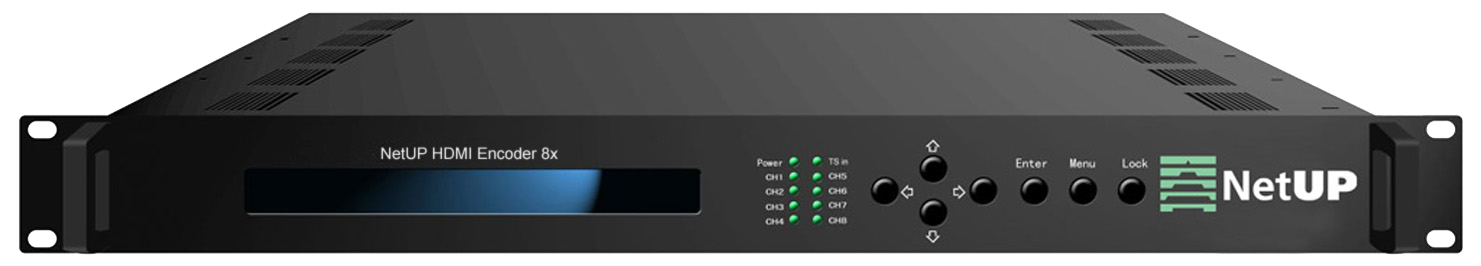

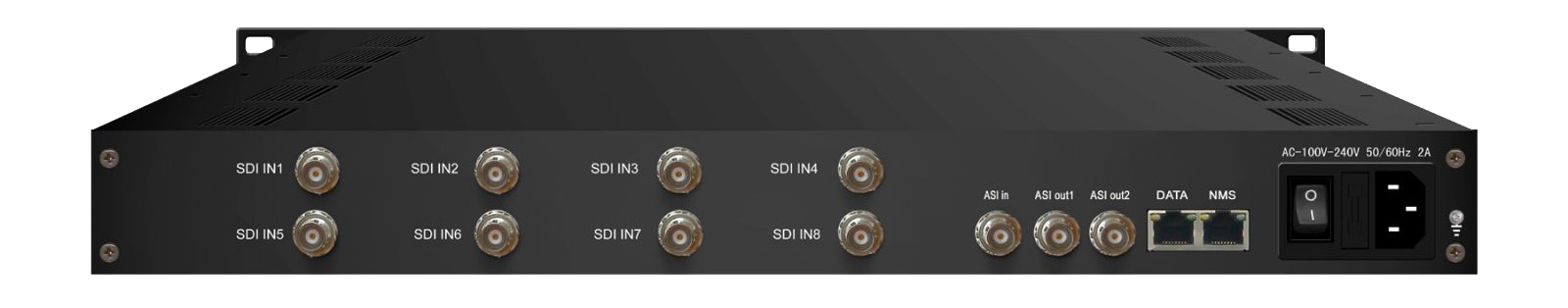

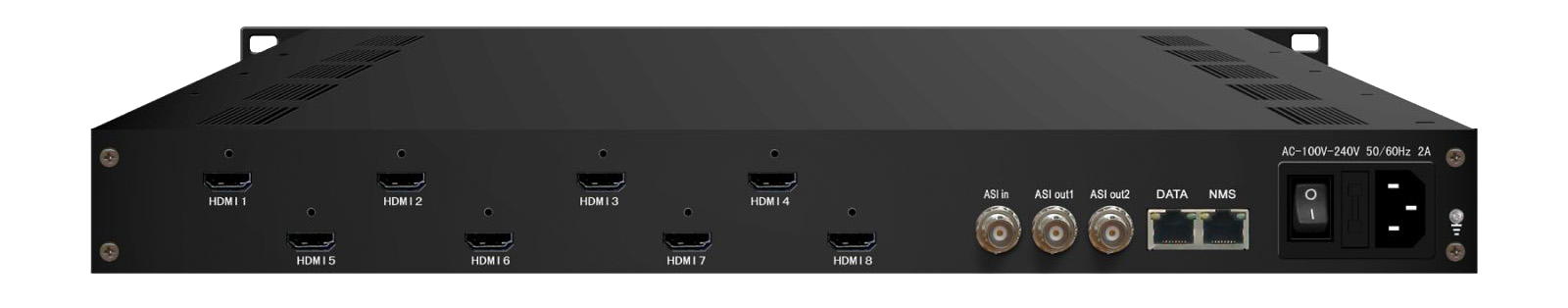

Professional solution for the best encoding quality of HD-SDI / HDMI streams.
Ideal for ISP, CATV.
Design
Rackmount 19”, 1U
Power: 220V A.C., 50/60 Hz
Dimensions: 440 х 415 х 44 mm
Performance
H.264, up to 19Mbps per channel with real-time output bit-rate monitoring
Up to 1080х60p
Optional AAC, AC3 passthrough
Interfaces
1 Gigabit Ethernet for DATA
1 10/100 for managment
4/8 inputs HDMI or HD-SDI
2 ASI-outputs

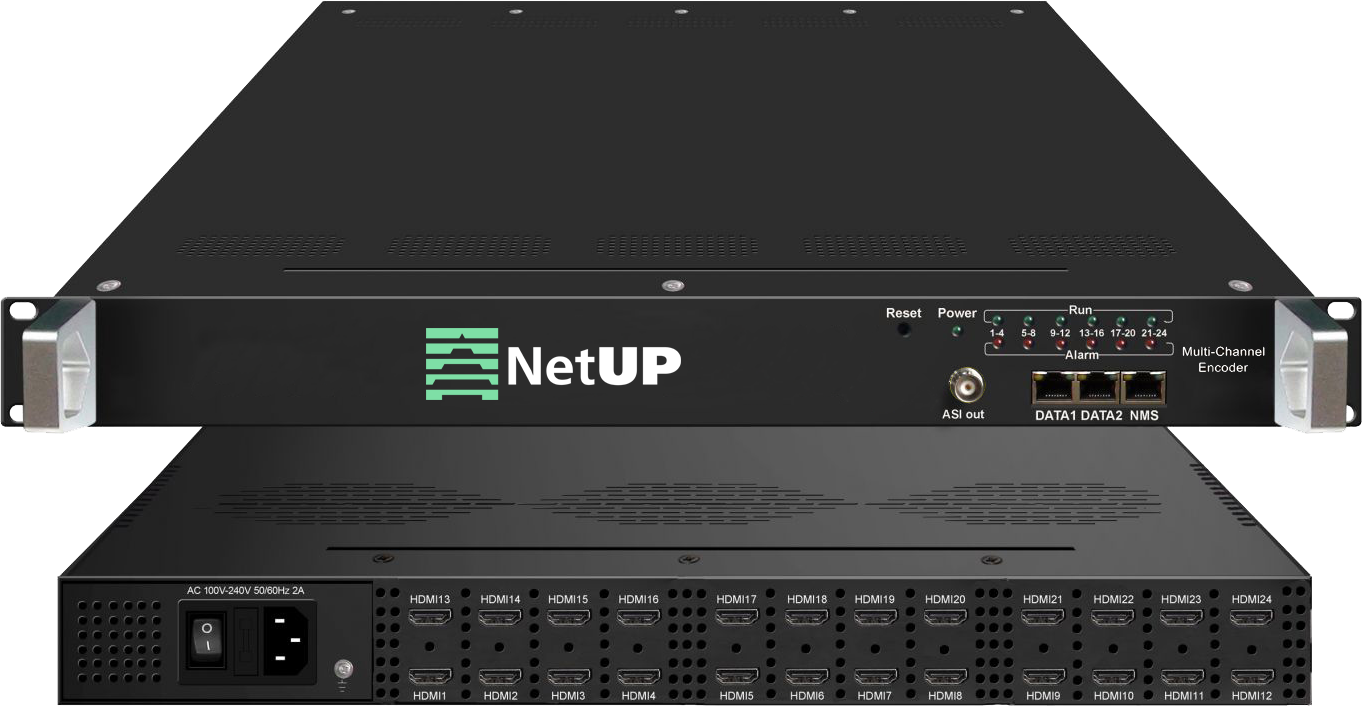

Inexpensive multichannel encoder with graphics embedding support.
Ideal for hotels, enterprise.
Design
Rackmount 19”, 1U
Power: 220V A.C., 50/60 Hz
Dimensions: 480 х 44 х 415 mm
Performance
H.264, up to 13Mbps per channel
Up to1080х30p
MPEG Layer II for audio
Interfaces
1-3 Gigabit Ethernet
8, 16, 24 HDMI-inputs
