NetUP Streamer HDxC allows to receive HD-SDI, SD-SDI and HDMI streams, encode to MPEG-2 or MPEG-4 AVC (H.264) + MPEG Layer2 (AAC optional) and broadcast to IP and DVB networks (ASI optional) simultaneously, as well as add hidden subtitles (Closed Caption) and suppress noise.
For achieving the highest image quality, we use professional Fujitsu chip encoders, providing resolution up to 1920 * 1080 * 60p with bitrate up to 19 Mbps per channel, and density of up to 12 inputs in one unit that allows the equipment to be used in various digital broadcasting systems.
Models

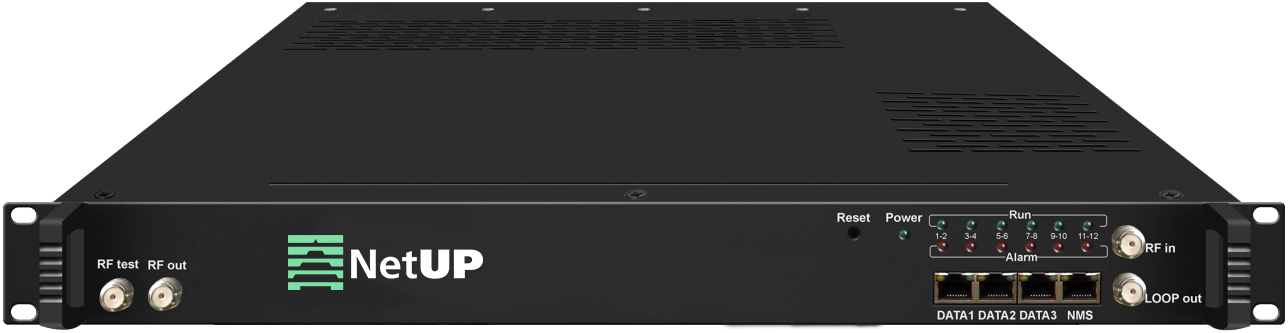

High-class multichannel HD encoder - QAM modulator with IP-stream inputs, noise suppression and closed caption (CC) support.
Design
Rackmount 19”, 1U
Power: 220V, 50/60 Hz
Dimensions: 410 х 480 х 44 mm

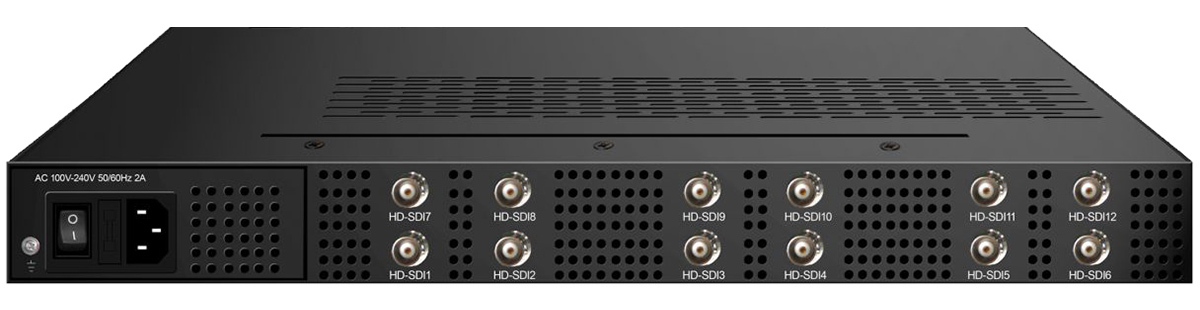

12 HDMI or HD-SDI inputs
Encoding
H.264, MPEG-2, up to 19Mbps per channel
Up to 1080х60p
MP2, AAC, AC3 до 320kbps
Modulator
16 independent carriers 256QAM
MER ≥40db
Frequency range - 50-950 MHz
Signal output level - -20+10dbm
Symbol rate - 5-7 Msps

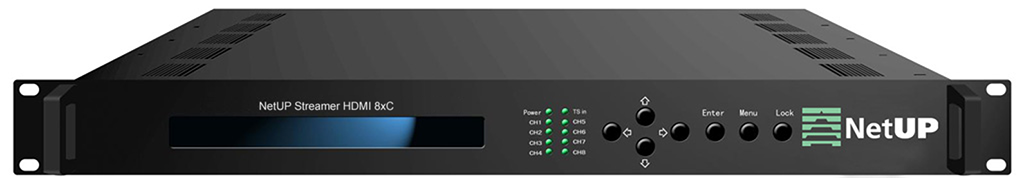

Professional solution for the best encoding quality of HDMI streams.
Design
Rackmount 19”, 1U
Power: 220V, 50/60 Hz
Dimensions: 440 х 415 х 44 mm

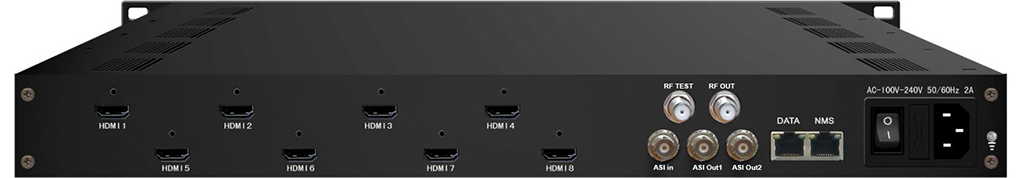

4/8 HDMI inputs
Encoding
H.264, up to 19Mbps per channel with real-time output bit-rate monitoring
Up to 1080х60p
Optional AAC, AC3 passthrough
Modulator
2 independent carriers 256QAM
MER ≥42db
Frequency range - 30-960 MHz
Signal output level - -30-10dbm
Symbol rate - 5-9 Msps

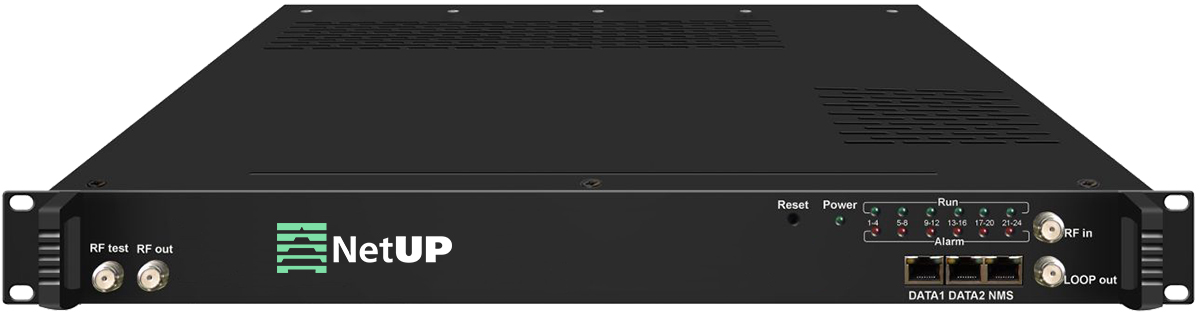

Inexpensive multichannel encoder-modulator with the IP-streams receiving feature, and the function of graphics overlay.
Design
Rackmount 19”, 1U
Power: 220V, 50/60 Hz
Dimensions: 480 х 44 х 415 mm

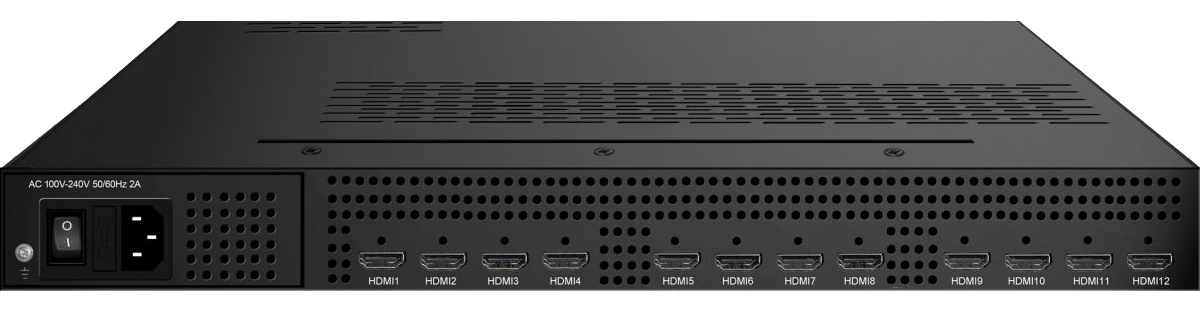

4, 8 or 12 HDMI inputs
Encoding
H.264, up to 13Mbps per channel
Up to 1080х30p
MP2 up to 384kbps
Modulator
4 independent carrier 256QAM
MER ≥42db
Frequency range - 50-960 MHz
Signal output level - -30-5dbm
Symbol rate - 5-7 Msps
