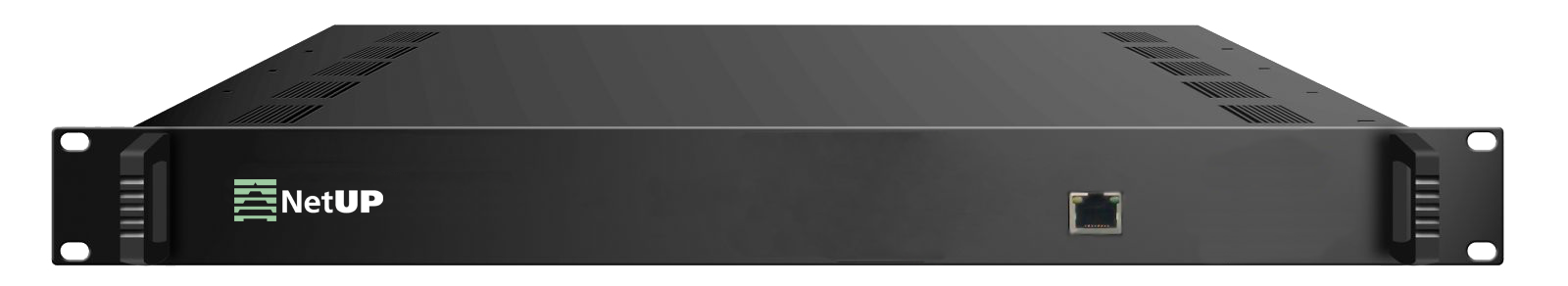

NetUP Streamer xC (16xC, 32xC, 48xC, 64xC) is designed to receive streams from IP with subsequent broadcasting to cable networks (DVB-C) in full compliance with EN300 429 / ITU-T J.83A / B. The device allows receiving more than 1000 TV channels, encrypting (scrambling according to ETR289, ETSI 101197, ETSI 103197), multiplexing in 16, 32, 48 or 64 non-adjacent carrier frequencies, respectively.
Tech specs
Design, interfaces
Rackmount 19”, 1U, 420 x 44 x 440 mm
Power supply: 220V, 50/60 Hz
Inputs: up to 4 Gigabit Ethernet for data, 1 Fast Ethernet for management
Outputs: up to 2 RF
Modulator
The frequency range is 30-1000Mhz, the step is 1Khz
The signal level is -20- + 10dBm, step 0.1
MER >= 40dB
Symbolic speed is 5-7Msps, the step is 1Ksps
Modulation - 16, 32, 64, 128, 256 QAM
Features
PCR accurate tuning
CA PID filtering
PSI/SI Editing
Support up to 180 PIDs per channel
DVB general scrambling system support, up to 4 simulscrypt CA
